Spectra-Solaris Laboratory

Spectra-Solaris Solar Cell Dark Test  capability is based on a precision set-up allowing in-depth solar cell analysis and determination of solar cell main parameters based on the well established two-diode model of the solar cell. The instrumentation is capable of characterizing a diverse range of solar cell parameters, including cell  complete dark I-V curves, series resistance Rs, shunt resistance Rsh, diodes ideality factors n1 and n2, saturation currents Jo1 and Jo2. The design, modular in nature, can be easily customized.

This state-of-the-art system has been designed while keeping in mind the specific needs of the present day solar industry. Anyone performing in-depth solar cell technology development or experimental research will benefit from the flexibilty, accuracy and breadth of testing capabilities as required by or even exceeding IEC, ASTM and JIS standards.

Technology:

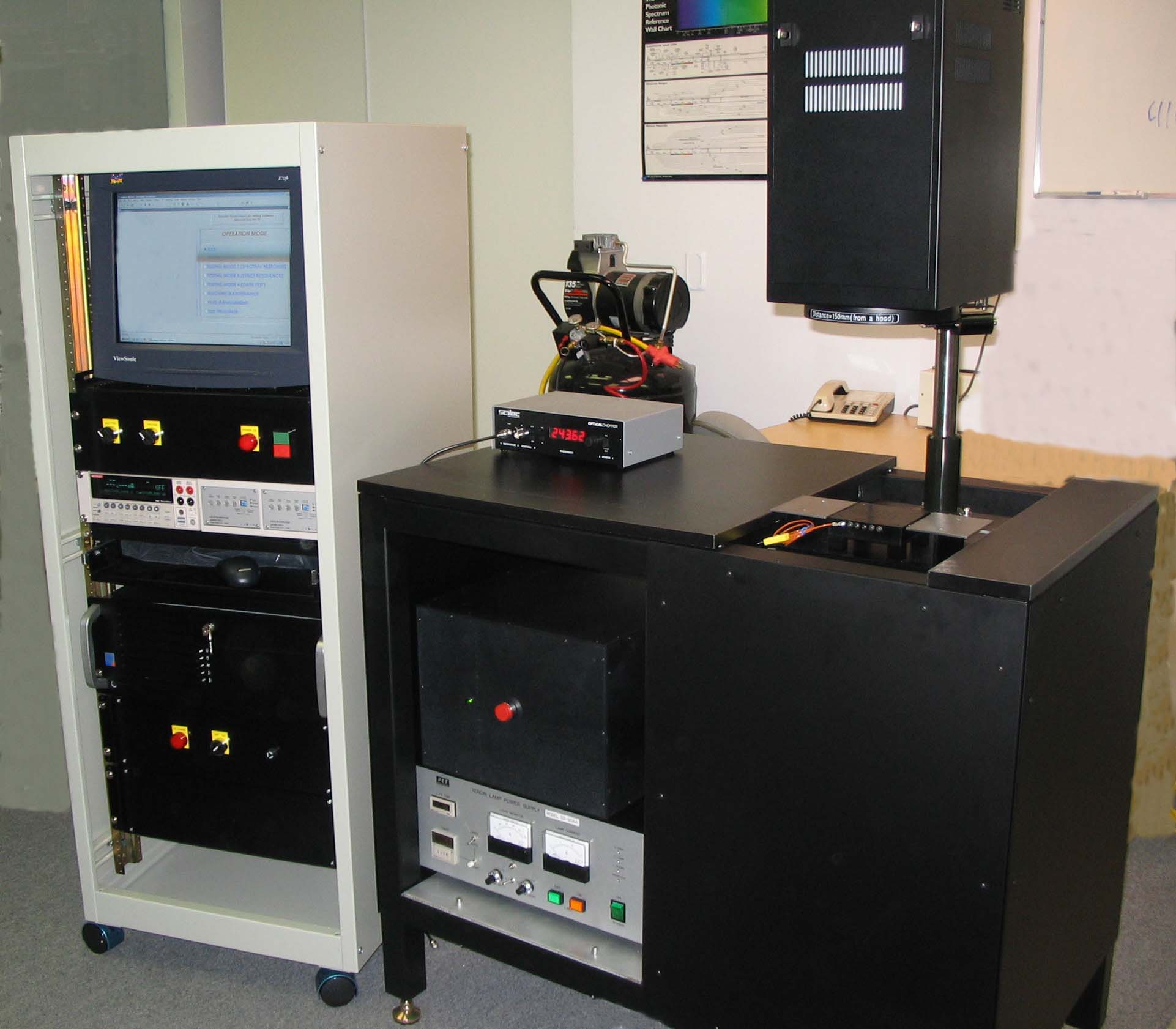

Spectra-Solaris Laboratory dark I-V measurement set-up is able to perform precision current measurements using a source-meter for low currents or a programmable electronic load for high currents.

More information about solar cell dark tests (DIV) usefulness in reliability assessment of solar cells could be obtained from our site.  For supplementary information click here.

System Features:

• precise measurement capabilities
• flexible test configurations for a variety of solar cell technologies
• true four-probe contacting technique
• double shielded (electric and magnetic) test enclosure
• controlled temperature stage with vacuum hold
• protective Nitrogen atmosphere is possible
• reliable and precise Keithley 2400 Source-Meter able to measure currents in the range 10 pA to 1A with 0.01% accuracy, sourcing 1 mV to 210 V
• programmable Kikusui PLZ164WA electronic load able to measure currents in the range 0 A to 33 A with 1mA resolution loading from 0 V to 150 V.
• fully-automated (computer-controlled) test and calibration technology
• high quality data acquisition equipment and electronic components ensure the precision, reliability and stability of the measurements

• full I-V curve dark test in four quadrants
• measurement at different operator selected temperatures
• suitable for crystalline, thin film, dye-sensitized and organic solar cells.

• high performance, user-friendly software
• powerful curve-fit mathematical capabilities


Note: On request we perform also full I-V tests with continuous AM1, AM1.5G, AM2 irradiation, extracting all significant parameters (Voc, Isc, Pmax, Ipmax, Vpmax, Fill Factor, Efficiency, Rs and Rsh) on cells not exceeding 6" size.

Please contact us at info@spectrasolaris.com for detailed product information.
